ESD二極管PESD12VL1BA 絲印12B 電壓12V
發表日期:2022-11-03瀏覽:691
PESD12VL1BA是什么元件?PESD12VL1BA有方向嗎?PESD12VL1BA參數怎么看?PESD12VL1BA哪家供應商有現貨?PESD12VL1BA價格多少?PESD12VL1BA一盤有多少pcs?PESD12VL1BA是哪家品牌的產品?PESD12VL1BA廠家是哪家?……關于“PESD12VL1BA”這顆熱銷ESD二極管,相信很多新老電子工程師都知道它的存在。那么,關于PESD12VL1BA這個料,您知道多少呢?
查閱電路保護器件廠家東沃電子(DOWOSEMI)推出的“ESD-PESD12VL1BA Datasheet”產品規格書可知:

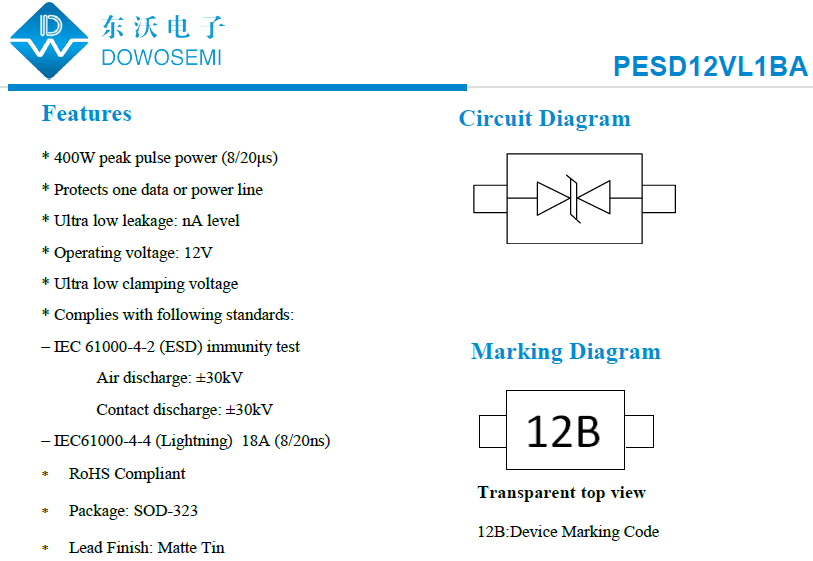

1)PESD12VL1BA簡介
The PESD12VL1BA is designed to replace multilayer varistors in portable applications such as cell phones, notebook computers and PDA’s, using monolithic sili-con technology to provide fast response time and ultra low ESD clamping voltage, making this device an ideal solution for protecting sensitive semiconductor compo-nents from damage. The PESD12VL1BA complies with the IEC 61000-4-2 (ESD) standard with ±15kV air and ±8kV contact discharge. The PESD12VL1BA is assembled into a lead-free SOD-323 package and will protect one unidirectional line. These devices will fit on the same PCB pad area as an 0805 MLV device.

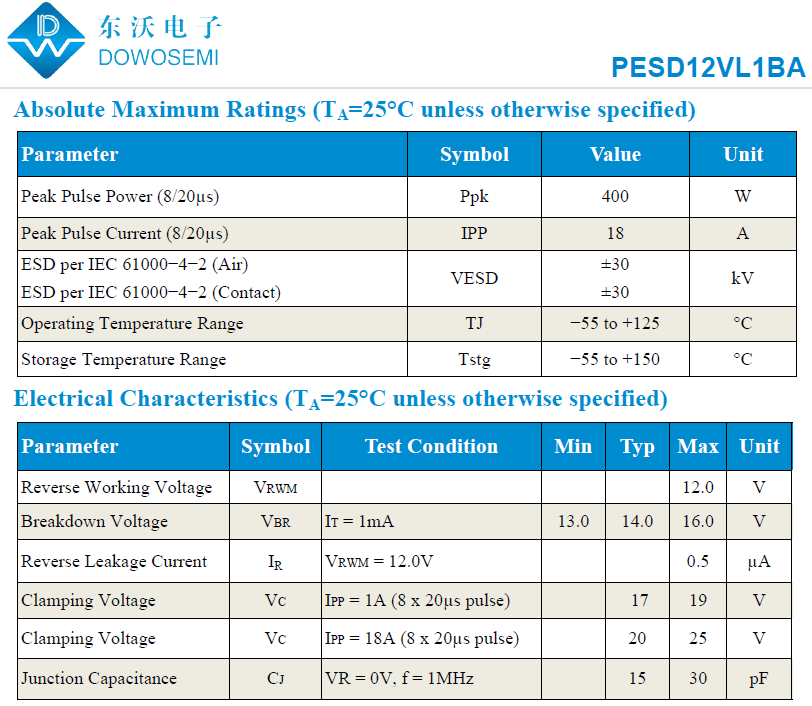

2)PESD12VL1BA參數
√ 峰值脈沖功率:400W√ 峰值脈沖電流:18A
√ 工作電壓:12V
√ 最小擊穿電壓:13V
√ 最小擊穿電壓:16V
√ 鉗位電壓:20V
√ 漏電流:0.5uA
√ 結電容:15pF

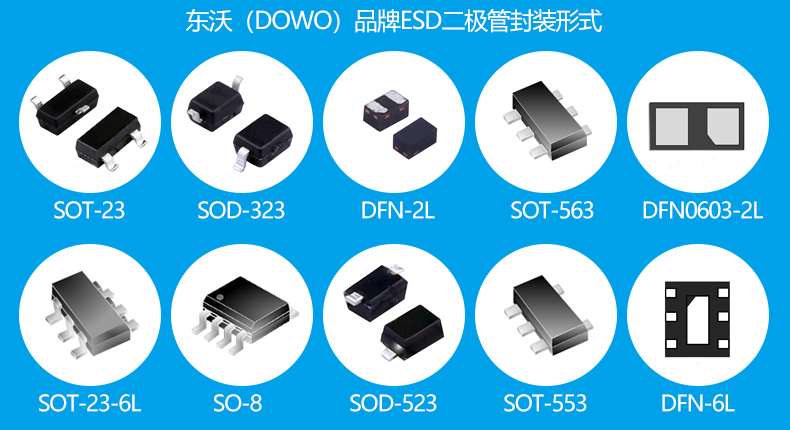

√ 封裝形式:SOD-323
√ 絲印標識:12B
√ 方向:雙向
√ 包裝:3000 pcs/Reel
√ Reel尺寸:7 inch
3)PESD12VL1BA應用
·Cellular Handsets and Accessories·Personal Digital Assistants
·Notebooks and Handhelds
·Portable Instrumentation
·Peripherals
·Pagers Peripherals
·Desktop and Servers
根據上述信息可知,PESD12VL1BA是ESD二極管,常應用于各類通信端口中;雙向,在焊接時不需要區分正負極性;400W、12V、18A、SOD-323;一盤3000pcs;PESD12VL1BA價格,不同廠家供應的PESD12VL1BA價格可能不一樣。具體價格,采購ESD二極管PESD12VL1BA,竭誠歡迎廣大新老客戶前來東沃電子(DOWOSEMI),好品質、好交期、好價格、好服務、好賬期,詳情咨詢:136 7581 6901(微信同號)朱經理!
