產品特性
? 玻璃鈍化芯片
? 在10/1000μ波形重復率（占空比）：0.01%下，峰值脈沖功率可達400w
? 低漏電流
? 單向
? 優良的鉗位能力
? 快速的響應時間
? 通過無鉛認證，符合ROHS
機械參數
? 方法：模制塑料
? 環氧樹脂：UL 94V-0阻燃劑
? 引線：可焊性按MIL-STD-750，方法2026可焊
? 極性：色帶表示陰極
? 安裝位置：任何
| 型號 | 圖片 | 封裝 | VBR.MIN(V) | VBR.MAX(V) | IT(mA) | IR(μA) | VRWM(V) | IPP(A) | VC(V) | 下載 |
|---|---|---|---|---|---|---|---|---|---|---|
|

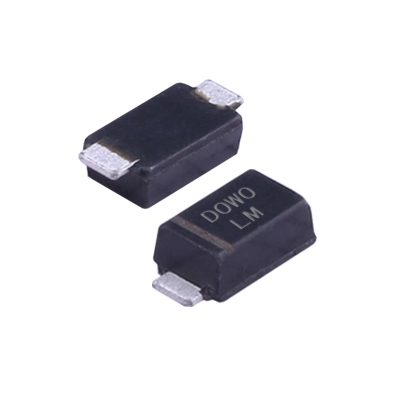

SOD-123 |
6.40 |
7.00 |
10 |
800 |
5.0 |
38.0 |
9.2 |
|
|
|

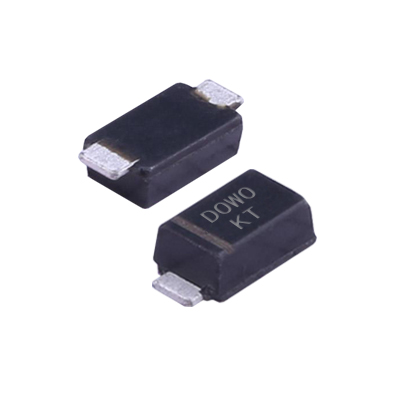

SOD-123 |
6.67 |
7.37 |
10 |
800 |
6.0 |
33.8 |
10.3 |
|
|
|
SOD-123 |
7.22 |
7.98 |
10 |
500 |
6.5 |
31.2 |
11.2 |
|
|
|
SOD-123 |
7.78 |
8.60 |
10 |
200 |
7.0 |
29.1 |
12.0 |
|
|
|
SOD-123 |
8.33 |
9.21 |
1 |
100 |
7.5 |
27.1 |
12.9 |
|
|
|
SOD-123 |
8.89 |
9.83 |
1 |
50 |
8.0 |
25.7 |
13.6 |
|
|
|
SOD-123 |
9.44 |
10.40 |
1 |
20 |
8.5 |
24.3 |
14.4 |
|
|
|
SOD-123 |
10.00 |
11.10 |
1 |
10 |
9.0 |
22.7 |
15.4 |
|
|
|
SOD-123 |
11.10 |
12.30 |
1 |
5 |
10.0 |
20.5 |
17.0 |
|
|
|
SOD-123 |
12.20 |
13.50 |
1 |
1 |
11.0 |
19.2 |
18.2 |
|
|
|
SOD-123 |
13.30 |
14.70 |
1 |
1 |
12.0 |
17.5 |
19.9 |
|
|
|
SOD-123 |
14.40 |
15.90 |
1 |
1 |
13.0 |
16.2 |
21.5 |
|
|
|
SOD-123 |
15.60 |
17.20 |
1 |
1 |
14.0 |
15.0 |
23.2 |
|
|
|
SOD-123 |
16.70 |
18.50 |
1 |
1 |
15.0 |
14.3 |
24.4 |
|
|
|
SOD-123 |
17.80 |
19.70 |
1 |
1 |
16.0 |
15.4 |
26.0 |
|
|
|
SOD-123 |
18.90 |
20.90 |
1 |
1 |
17.0 |
14.5 |
27.6 |
|
|
|
SOD-123 |
20.00 |
22.10 |
1 |
1 |
18.0 |
13.7 |
29.2 |
|
|
|
SOD-123 |
22.20 |
24.50 |
1 |
1 |
20.0 |
12.3 |
32.4 |
|
|
|
SOD-123 |
24.40 |
26.90 |
1 |
1 |
22.0 |
11.3 |
35.5 |
|
|
|
SOD-123 |
26.70 |
29.50 |
1 |
1 |
24.0 |
10.3 |
38.9 |
|
|
|
SOD-123 |
28.90 |
31.90 |
1 |
1 |
26.0 |
9.5 |
42.1 |
|
|
|
SOD-123 |
31.10 |
34.40 |
1 |
1 |
28.0 |
8.8 |
45.4 |
|
|
|
SOD-123 |
33.30 |
36.80 |
1 |
1 |
30.0 |
8.3 |
48.4 |
|
|
|
SOD-123 |
36.70 |
40.60 |
1 |
1 |
33.0 |
7.5 |
53.3 |
|
|
|
SOD-123 |
40.00 |
44.20 |
1 |
1 |
36.0 |
6.9 |
58.1 |
|
|
|
SOD-123 |
44.40 |
49.10 |
1 |
1 |
40.0 |
6.2 |
64.5 |
|
|
|
SOD-123 |
47.80 |
52.80 |
1 |
1 |
43.0 |
5.8 |
69.4 |
|
|
|
SOD-123 |
50.00 |
55.30 |
1 |
1 |
45.0 |
5.5 |
72.7 |
|
|
|
SOD-123 |
53.30 |
58.90 |
1 |
1 |
48.0 |
5.2 |
77.4 |
|
|
|
SOD-123 |
56.70 |
62.70 |
1 |
1 |
51.0 |
4.9 |
82.4 |
|
|
|
SOD-123 |
60.00 |
66.30 |
1 |
1 |
54.0 |
4.6 |
87.1 |
|
|
|
SOD-123 |
64.40 |
71.20 |
1 |
1 |
58.0 |
4.3 |
93.6 |
|
|
|
SOD-123 |
66.70 |
73.70 |
1 |
1 |
60.0 |
4.1 |
96.8 |
|
|
|
SOD-123 |
71.10 |
78.60 |
1 |
1 |
64.0 |
3.9 |
103.0 |
|
|
|
SOD-123 |
77.80 |
86.00 |
1 |
1 |
70.0 |
3.5 |
113.0 |
|
|
|
SOD-123 |
83.30 |
92.10 |
1 |
1 |
75.0 |
3.3 |
121.0 |
|
|
|
SOD-123 |
86.70 |
95.80 |
1 |
1 |
78.0 |
3.2 |
126.0 |
|
|
|
SOD-123 |
94.40 |
104.00 |
1 |
1 |
85.0 |
2.9 |
137.0 |
|
